ALAN EDGINGTON’S INFINITE WING

My lockdown project; €˜the infinite wing”, 3d printed with 50” wing span.

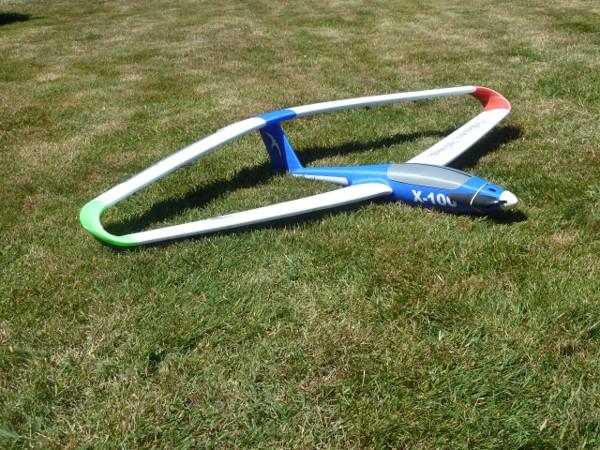

Alans wing

Thanks for all the interest in this ˜Infinite wing X100”, some details;

 the design is from www.3daeroventures.com I used PLA + filament on my Ender 3 printer which took somewhere around 100 hours to print but spread over many days was no great problem.

Specs:

Wingspan-50”€

Length-35”€

Empty Weight  1300gm. approx.w/o battery

Battery 3s 2200mah

Motor- 3536/910kv

ESC- 40amp

Controls-Throttle, Aileron, Elevator (Elevons)

We will have to wait for some fair weather for the maiden flight, but my  pilot skills are very much in the novice stage therefor my friend Paul  Johnson has adopted this model. I will be hoping to see it fly very  soon.

Alan E

(I think this is called the Prandtl wing or Box Wing: there’s lots on the web about it.- Ed)
