How many “G” could the wing of a standard Goldberg Cub take before it broke? Could you, indeed, destroy the aircraft just using aerodynamic forces?
Take a WAG (wild-assed guess) NOW as to how many bricks I stacked up on top of the now redundant wing of my Cub before it snapped. Each brick weighs 5.75 lbs and the model weighed 7 lbs.
|
|
|
|
|
|

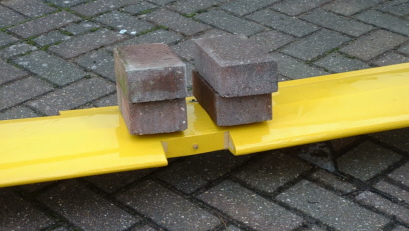

This is just the start: 4 bricks weigh 23 lbs: the equivalent of 4g. The pilot is puffing hard but the wing just shrugs.
|
|
|
|
|

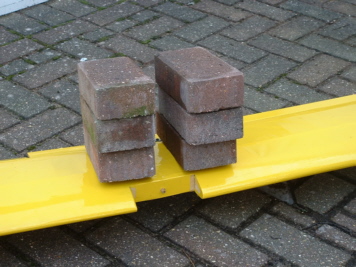

6 bricks weigh 34.5 lbs—we are up to 5g now. Not a sign of any stress.
|
|
|
|
|
|
|
|

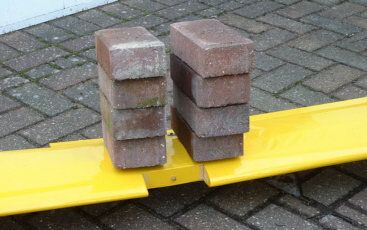

8 bricks, 46 lbs, 6.5g and still no signs of stress from the wing.
|
|
|
|
|
Pulling 8g now and the pilot is blacking out, but there is just a small wrinkle in the covering to the right of the bricks to show that, well, the wing is... feeling a little pain. I changed the camera angle to show that there is no cheating going on!
|
|
|
|
|
|
|
|

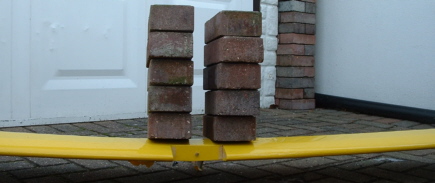

69 lbs and nearly 10g on the meter. The pilot is unconscious. Probably a good thing with all those bricks over his head.
|
|
|
|
|

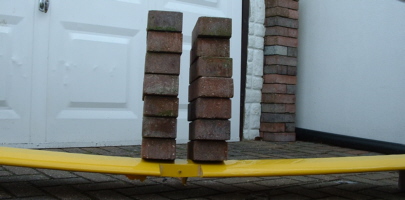

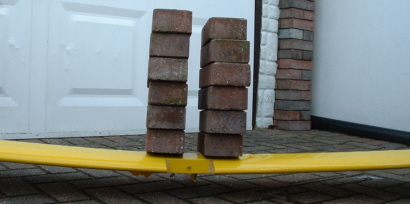

14 bricks, 11.5g. The wing is still breathing easy.
|
|
|
|
|
|
|
|

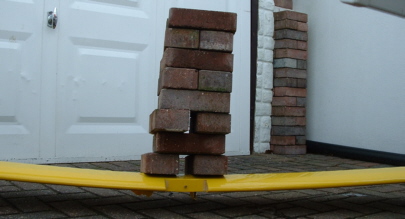

I had to re-arrange the bricks as they were about to topple over. It’s even more of a point load, and 16 bricks weigh 92 lbs. The wing is pulling over 13g, the covering is badly wrinkled but there isn’t a cheep from the main spar.
|
|
|
|
|

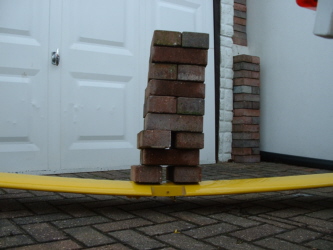

18 bricks is 103 lbs. But not done yet... The stack is really unstable though!
|
|
|
|
|
|
|
|
|
|

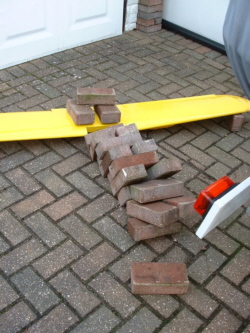

Bang! 20 bricks, and I had to press down on the stack, because they were so unstable I couldn’t get to the store to add any more. So a standard Goldberg Cub wing, built over 15 years ago by a novice will take a point load of at least 115 lbs, or 16.5g. What a wonderful advert for balsa wood Pro-film and liteply!
Mike Roach
|
|
|
